BESTARSENSOR Multilayer Piezoelectric Ceramic BPM-F0505T0.3-L20-HB-L3-HF
| Capacitance at 120Hz and 1V | 248±13% nF |
| Dielectric loss | ≤0.05 |
| Operating voltage | 3 VRMS |
| Operating resistance | ≤100 Ω |
| Insulation resistance | ≥100 MΩ |
| Operating temperature | ‐25...+65℃ |
| Storage temperature | ‐40...+85℃ |
Features:
● Ultra-high frequency extension
● Excellent transient response
● Miniaturized design
● No electromagnetic interference
● Low power consumption/High efficiency
Description

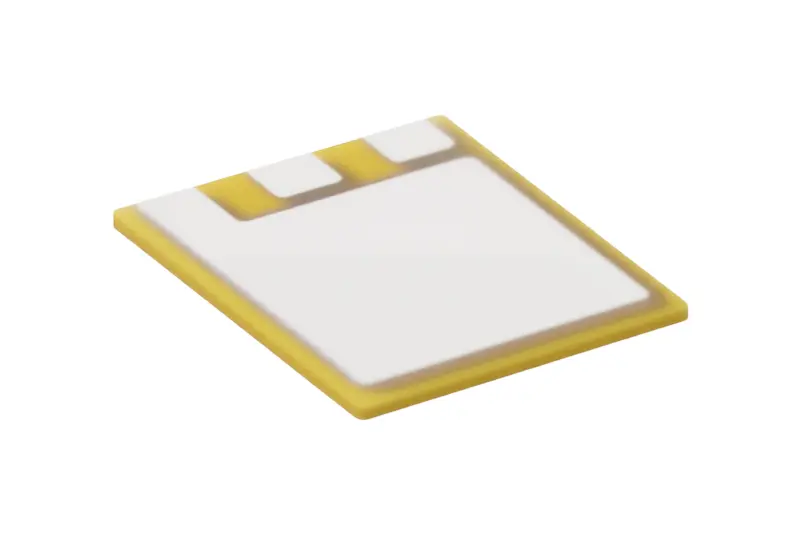

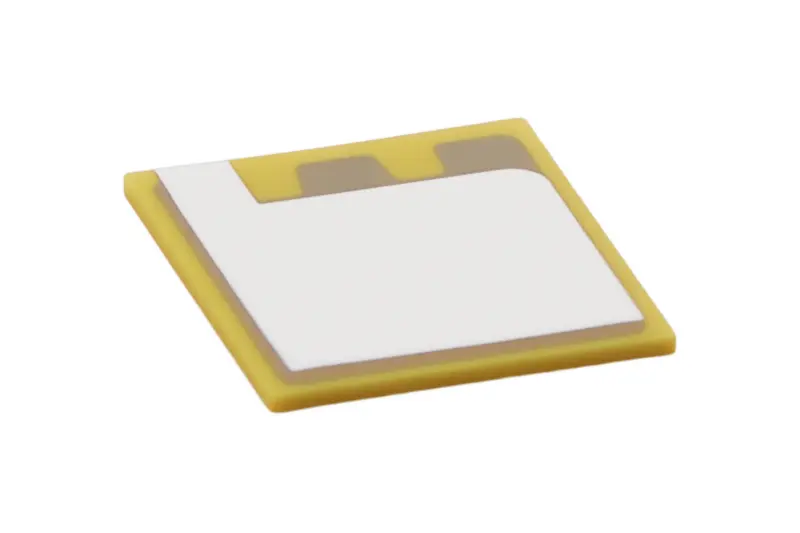

The BPM- F0505T0.3-L20-HB-L3-HF is a multilayer piezoelectric ceramic plate. It was designed for uses that require ultra-high-frequency functionality and high-precision movement. Its miniaturised and compact design makes it ideal for advanced electronic assemblies, where space is at a premium. The multilayer construction provides efficient conversion of energy, exhibits excellent transient response and has steady frequency response even for rapid excitation.
It is produced of high reliability piezoelectric ceramic materials, and thus provides consistent performance over many years of operation. Its mechanical sensitivity and electrical response make it an accurate output displacement or vibration measurement device making it ideal for micro scale actuation and high frequency resonance control applications. The design can be integrated with several different types of mounting which allows secure installation for small system configurations.
We support our customers because as a dedicated manufacturer and supplier of piezoelectric ceramics. Our emphasis on quality and flexible customization allows different requirements of the engineering field to be met.
