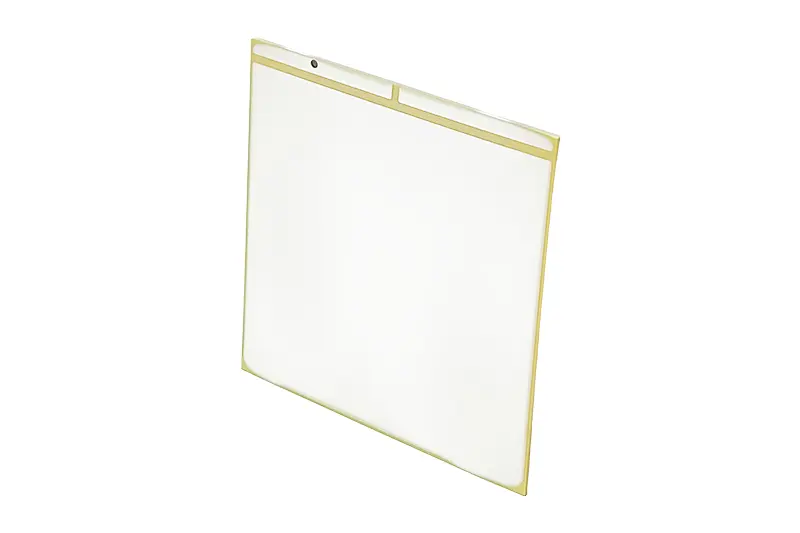

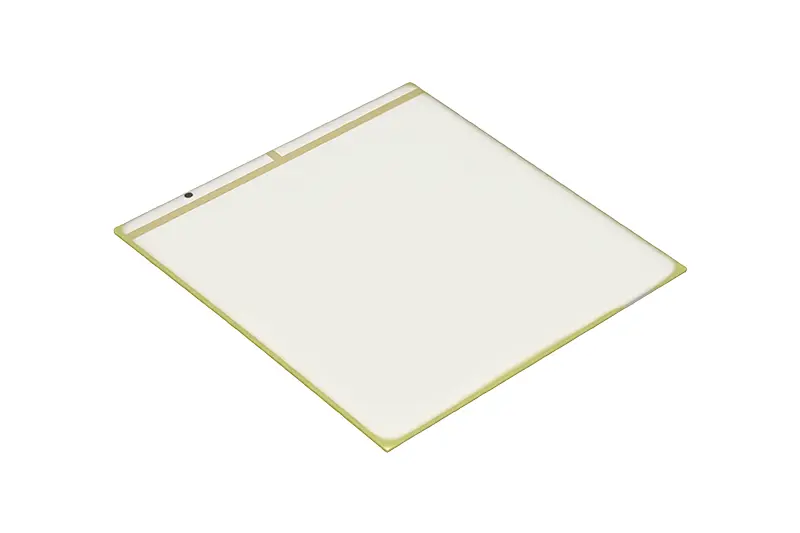

BESTARSENSOR Multilayer Piezoelectric Ceramic BPM-F4040T0.32-L11-SB-O1
| Length | 40 ±0.3 mm |
| Width | 40 ±0.3 mm |
| Thickness | 0.32 ±0.05 mm |
| Capacitance | 8.0±20% (at 120 Hz 1 Vrms) uF |
| Dielectric Loss | ≤0.05 |
| Insulation Resistance | ≥100 KΩ (@10VDC) |
| Input Voltage | ≤20vp-p |
| Operating Temperature | -20...+65℃ |
| Storage Temperature | -40...+85℃ |
Features:
● Ultra-high sensitivity/low resonant frequency
● Ultra-thin structural design/concealed sound emission
● No electromagnetic interference/low power consumption
Description
The BPM-F4040T0.32-L11-SB-O1 is a multilayer piezoelectric ceramic component for applications that require a high sensitivity and low resonant frequency. Its construction allows it to be rapidly responsive to small mechanical inputs making precise and stable acoustic signals. This makes it perfect for advanced acoustic modules, micro actuation system and small signal interaction module.
The element is manufactured from high quality piezoelectric ceramic materials. Its multilayer structure has characteristics of efficient vibration and low power consumption, which produce no electromagnetic interference, making them very suitable for sensitive electronic platforms that require stable operation without interference. It can be used in near-field acoustic output, tactile feedback systems, intelligent sensing modules and small audio signaling.
Engineers and product developers can select BPM-F4040T0.32-L11-SB-O1 for embedded systems, miniature or contained systems that require a flexible solution.
OEM developers as well as piezoelectric ceramic manufacturers and suppliers who are seeking the extremely stable, low-power, durable components, will find that this part fits perfectly with their requirements.
In short, it is the combination of high sensitivity, low resonance, super thin construction and energy efficient operation which makes this multilayer plate a reliable choice for next-generation acoustic and sensing devices.
