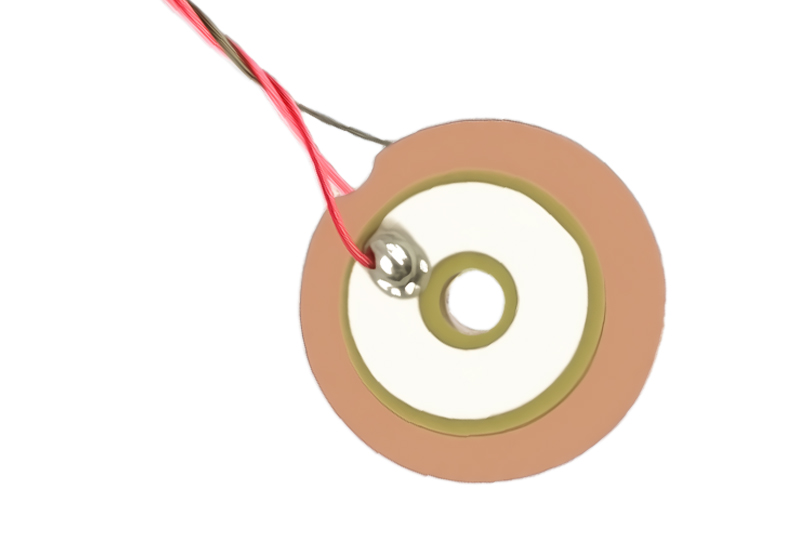

BESTARSENSOR Multilayer Piezoelectric Ceramic BPM-Y08Y1.3TC0.48-LD05-HU-O3-HF
| Capacitance at 120Hz and 1V | 120±20% nF |
| Operating Voltage | 5Vp-p |
| Dielectric Loss | ≤0.05 |
| Resonant Frequency | 21±2K Hz |
| Resonant Impedance | ≤100 Ω |
| Insulation Resistance at 5VDC | ≥1 MΩ |
| Silver Adhesion | ≥2.5 N |
| Positive Terminal Marking | Ink pot |
| Metallic Material | 铍铜 |
| Operating Temperature | -25...+65℃ |
| Storage Temperature | -40...+85℃ |
Features:
● Excellent ultra-high frequency extension/transient response
● Miniaturized design
● No electromagnetic interference
● Low power consumption/high efficiency
Description
The BPM-Y08Y1.3TC0.48-LD05-HU-O3-HF is a multilayer piezoelectric ceramic which offers excellent high-frequency response and extremely rapid transient response. Its layer structure enables its speedy activation of vibration and stability in its acoustic output, making it suitable for accuracy systems requiring instant signal behaviour, speedy actuation or finely controlled micro-acoustics of the output.
Designed on the micro-scale, the footprints of the component are very compact. This makes easy integration in miniature assemblies, light weight mechanisms or even dense circuited layouts. Due to its small size, it supports embedded installation and provides design flexibility unmatched with typical acousticefficiency and stability.
The element is constructed on state-of-the-art technology of piezoelectric ceramic materials. The multilayer structure offers good energy conversion and low power consumption. It is free of electromagnetic interference creation and will promise clean and reliable performance in sensitive electronic surroundings.
The element is thus functionally versatile like the refined piezoelectric ceramic disc, plate, or specialized element. Engineers and designers can freely install it into narrow mechanical spaces or high density circuit architectures. Its performance profile is suited to the needs of the OEM developer, piezoelectric manufacturer and suppliers who are looking for components that provide efficiency, reliability and stability of operation over long periods of time.
With the high frequency capability, excellent transient response, micro scaled structure, low power operation and no EMG performance, BPM-Y08Y1.3TC0.48-LD05-HU-O3-HF lays a solid foundation for the next generation of acoustic, sensing and actuation technology that require fast, precise and high efficiency piezoelectric behavior.
