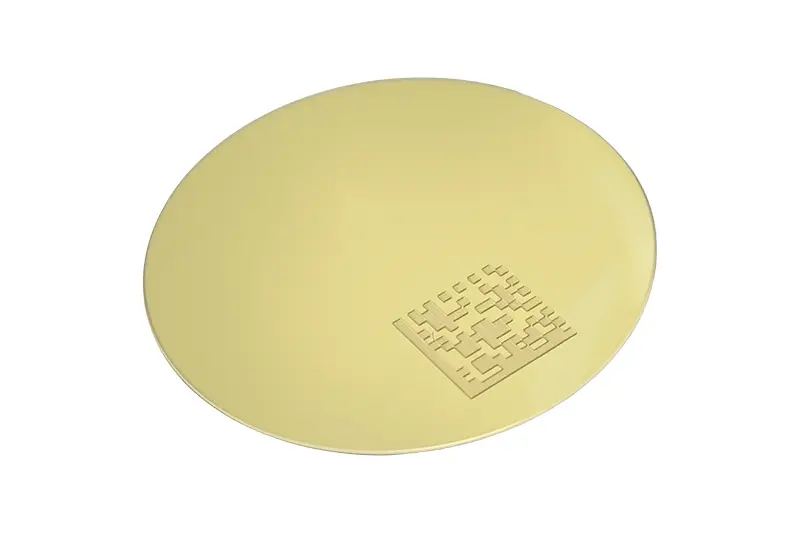

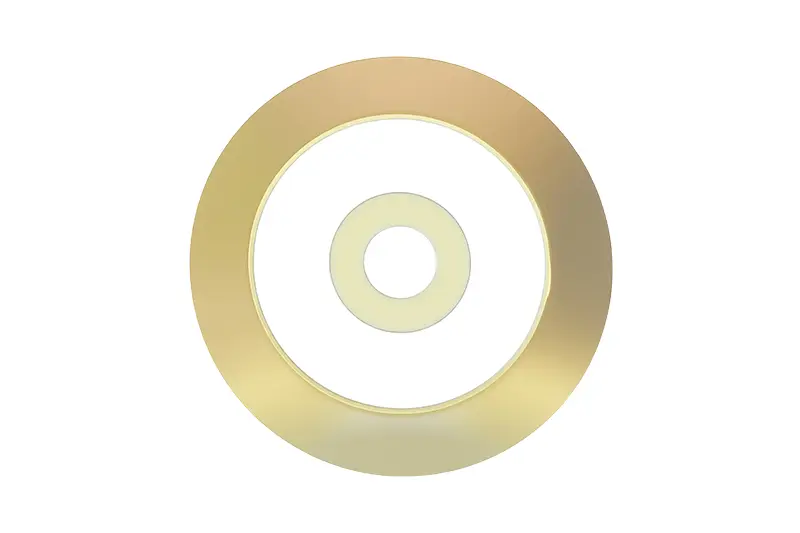

BESTARSENSOR Multilayer Piezoelectric Ceramic BPM-Y24TC0.44-L03-HU-O1-HF-GM
| Capacitance at 120Hz and 1V | 135±20% nF |
| Operating Voltage | -30~+80V |
| Resonant Frequency | 4.5±1K Hz |
| Resonant Impedance | ≤100 Ω |
| Dielectric Loss | ≤0.05 |
| Insulation Resistance at 25VDC | ≥100 MΩ |
| Positive Terminal Marking | Ink pot |
| Metallic Material | Brass |
| Operating Temperature | -25...+65℃ |
| Storage Temperature | -40...+85℃ |
Features:
● Large displacement/high acceleration
● Facilitates compact structural design
● Fast response time
● Integrates feedback and sensing
Description
The BPM-Y24TC0.44-L03-HU-O1-HF-GM is a multilayer piezoelectric ceramic element that produces high power mechanical output for applications that require high displacement and high rate acceleration. Its small size allows for high degree of motion which makes it ideal for precision actuation and micro-motion control as well as intelligent mechanical response in tight spaces.
With high flexibility to allow for compact form factors and miniaturised assemblies. The element has an instant response to control signals, resulting in stable and real-time motion activity which are directed to advanced instruments and dynamic positioning.
Built from a high performance piezoelectric ceramics material, the multilayer stack provides high efficiency, uniform output and longevity compared with the output. Integrated sensing allows for an integrated feedback which enables precision control loops, self monitoring and adaptive actuation. This dual functionality enhances the accuracy in addition to reducing the need for additional sensors.
Its installation versatility is comparable with that of precision ceramic discs, compact plates, and high density elements; thus a wide range of modern piezoelectric applications. OEM designers, manufacturers and suppliers in search of compact higher efficiency parts are sure to find it ideal for robotics applications, micro pumps, optical applications, haptic interfaces, and intelligent motion platforms. BPM-Y24TC0.44-L03-HU-O1-HF-GM offers a high placement range, high acceleration, quick response and prebuilt sensing functionality.
