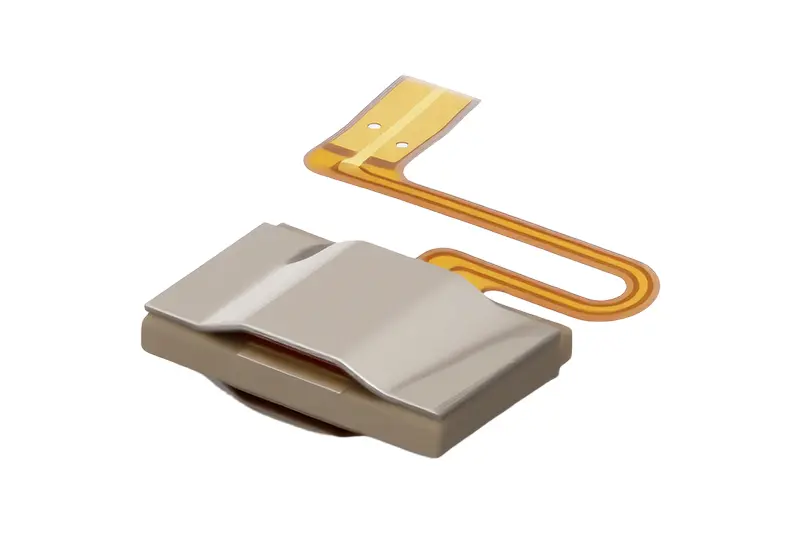

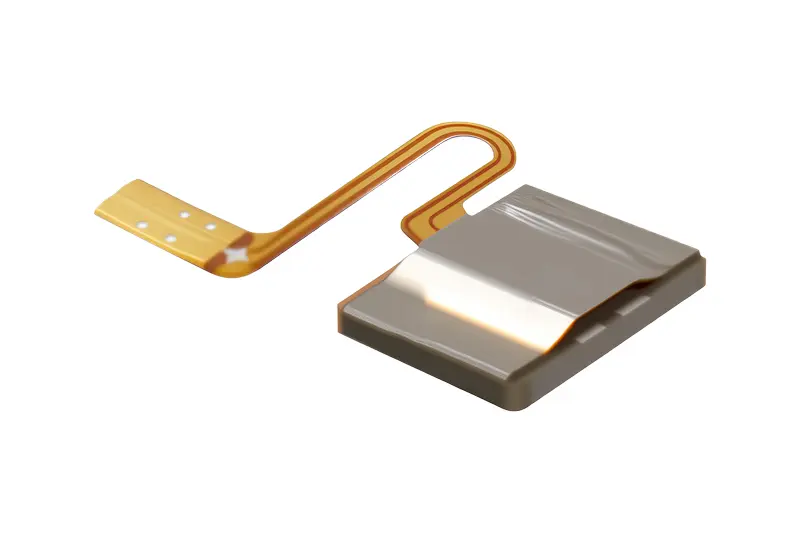

BESTARSENSOR Multilayer Piezoelectric Ceramic Module BPH05X3.5 Model-YD
| Length | 5±0.15 mm |
| Width | 7.77±0.2 mm |
| Free Capacitance | 140±20% nF (at 1 KHz, 1V) |
| Dielectric Loss | ≤ 0.06 |
| Acceleration Speed | 0.9±0.2g@0~60 Vp-p、20g load |
| Operating Temperature | -25...+65℃ |
| Storage Temperature | -40...+85℃ |
| Metallic Materials | SUS301 EH |
Features:
● Ultra-small size
● High thrust
● Low power consumption
● No electromagnetic interference
Description
The BPH05X3.5 Model-YD is a small, powerful piezoelectric ceramic module designed for accurate actuation and energy efficiency. High force and displacement are achieved in its multilayer design while remaining ultra-compact. The module is efficient in conservation of energy along with a very low power consumption which makes it ideal for modern micro-actuation and precision control systems.
Featuring a multiple layer construction with even and high-density structure, the BPH05X3.5 Model-YD design generates high thrust and responds quickly even under low drive voltage. It provides repeatable and accurate movement in a variety of applications. Owing to the quiet operation of the device and the lack of electromagnetic interference it produces, the device is well suited for use in sensitive electronics and applications where noise is intolerable.
This element is mechanically stable and thermally stable. It is resistant to corrosion and moisture, ensuring long-term reliability even in harsh conditions. Its modular construction allows you to easily integrate the ceramic plate into compact devices or more complicated systems.
BPH05X3.5 Model-YD products are used in precision positioning, optical alignment, micro fluidics control, medical devices and acoustic transducers. Their ability to respond quickly and cover large actuation ranges makes them ideal for use in tools that require microscopic or nanoscopic movement.
