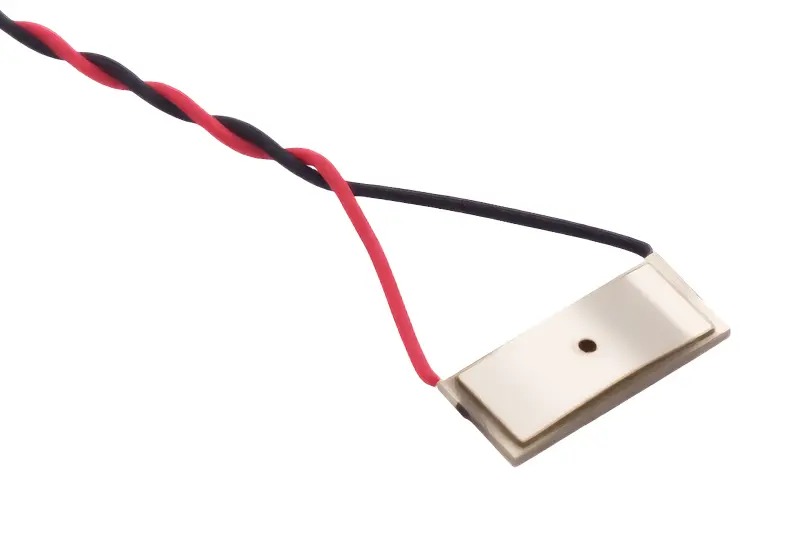

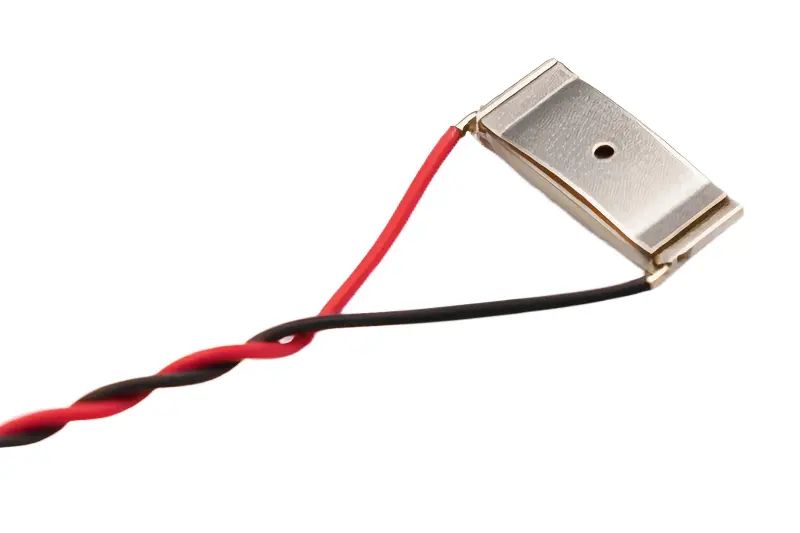

BESTARSENSOR Multilayer Piezoelectric Ceramic Module BPH0904T181MW100 HF
| Capacitance at 1kHz/1Vrms | 420±20% nF |
| Curie temperature | >280°C |
| Piezoelectric strain constant | >450 pC/N |
| Resonant frequency | 38±0.5 KHz |
| Operating voltage | -10...+60 V |
| Electrodes | Ag |
| Positive electrode marking | Ink pot |
| PZT (lead zirconate titanate) material | PZT 5 |
| Weight | 0.4g |
| Operating temperature | -40...+85℃ |
| Storage temperature | -40...+125℃ |
Features:
● Large displacement
● High acceleration
●Concealed installation
● Easy assembly
● Low power consumption
Description
The BPH0904T181MW100 HF is a high-performance piezoelectric ceramic module. It has a huge displacement and acceleration while being compact and energy efficient. Featuring a unique multi-layer structure to maximize its energy-efficiency potential while working with great stability, this marine gearbox can handle dynamic duty and features a high-frequency drive.
The element uses an optimized multiple layer structure to increase actuation efficiency at low voltage. It is quick to respond to and has good control, which allows it to be precisely positioned and controlled in complex systems. It produces very little heat and no electromagnetic pollution which means that performance stays clean and stable under sensitive environments.
This ceramic element is flexible and simple to use. The ceramic plate construction provides a long-term durability with high structural stability and performance that does not change over a long time. Piezoelectric ceramics such as the BPH0904T181MW100 HF are key in today's applications. They drive precision actuators, ultrasonic devices, scanning systems, and advanced motion platform. The large displacement and high acceleration of the module are suitable for high speed, high accuracy and repeatable displacement.
Made by experienced manufacturers, this module integrates the compact design, energy saving and mechanical reliability. Companies who are looking for reliable suppliers find the BPH0904T181MW100 HF a reliable solution. It provides great performance, easy integration and long-term working stability in engineering and automation high-end systems.
