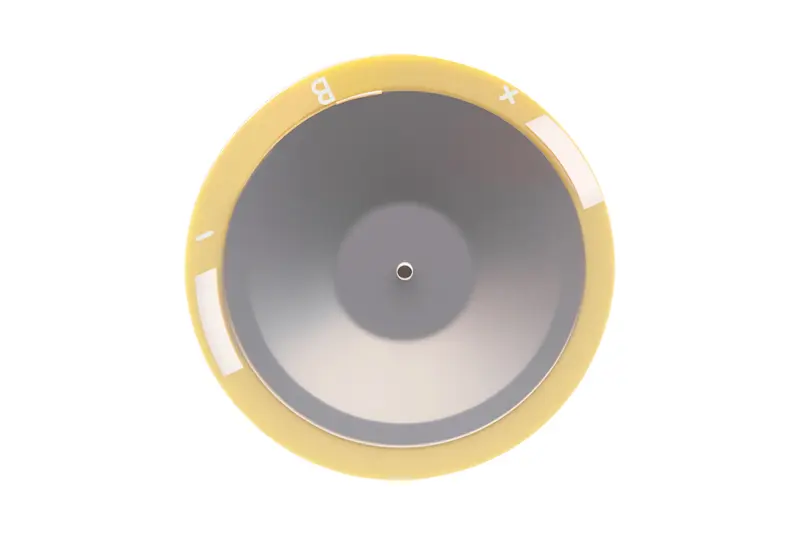

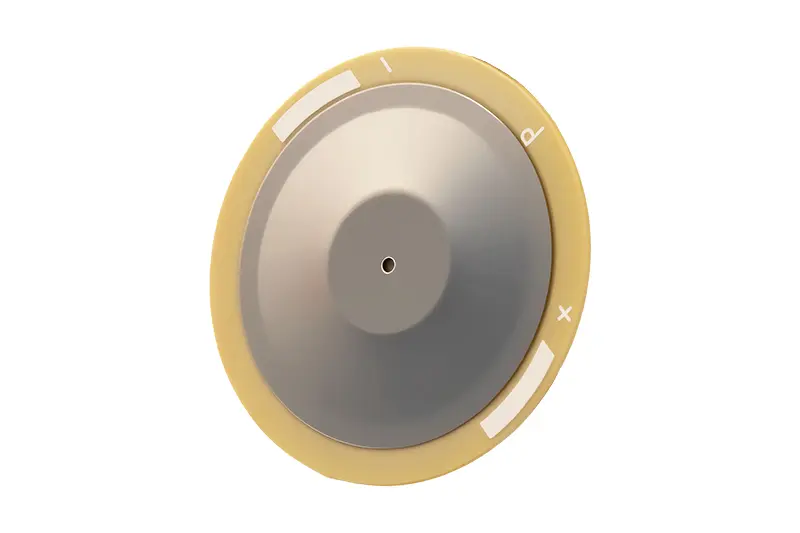

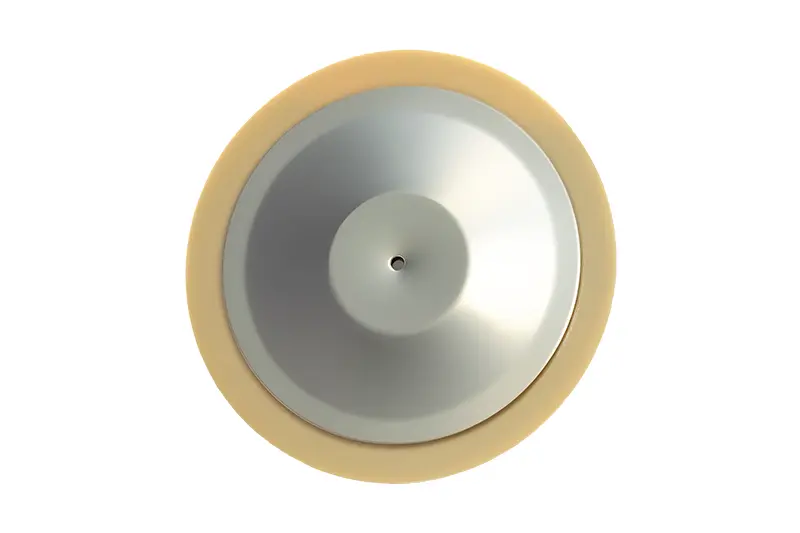

BESTARSENSOR Multilayer Piezoelectric Ceramic Module BPH2121T118M HF
| Electrostatic discharge (ESD) at 120Hz/1V | 400±15% nF |
| Electrostatic discharge requirements | 10 Kv air |
| Drive voltage | -30~90V (15ms Max) |
| Static capacitor temperature stability | ＜10‰/℃ |
| Operating temperature | -25~+65°C |
| Storage temperature | -40~+70°C |
| Operating humidity | 95% @45℃ |
| Storage humidity | 95% @60℃ |
Features:
● Large displacement
● High acceleration
●Concealed installation
● Easy assembly
● Low power consumption
Description
The BPH2121T118M HF is a high-performance piezoelectric ceramic element for applications that require high displacement, high acceleration and high accuracy. It adopts the advanced ceramic materials to transfer the electrical energy into accurate mechanical movement with a low power consumption. With steady output, fast response time and operation, it is suitable for dynamic and high-frequency environments.
Designed in a compact form, the BPH2121T118M HF can be mounted discreetly to fit into mechanical and electronic systems with extreme ease. Thanks to its optimized design, it can be assembled quickly and mounted easily and securely, making it simple to get up and running. Low power consumption and high efficiency means stable operation over long periods without device degradation.
This ceramic element provides precise control of displacement and high acceleration ideal for use in motion systems that require accurate and repeatable movements and rapid response. It has a strong plate construction, which provides mechanical strength and resistance to corrosion-arising weather conditions as well as positive performance even in demanding and sensitive conditions.
BPH2121T118M HF modules have numerous applications in precision actuation, optical alignment, fluid control, medical devices and ultrasonic transducers. Their high level of concealment, small size, and low power operation make them ideal for compact, portable devices where performance and efficiency are paramount.
