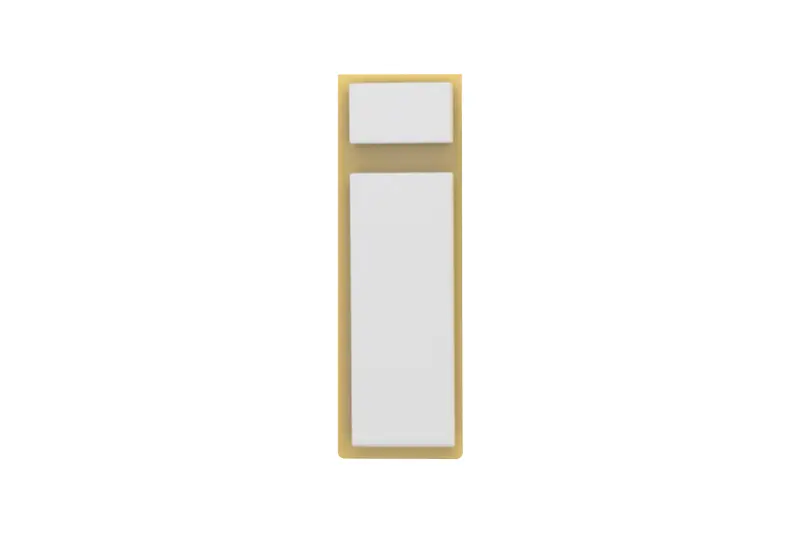

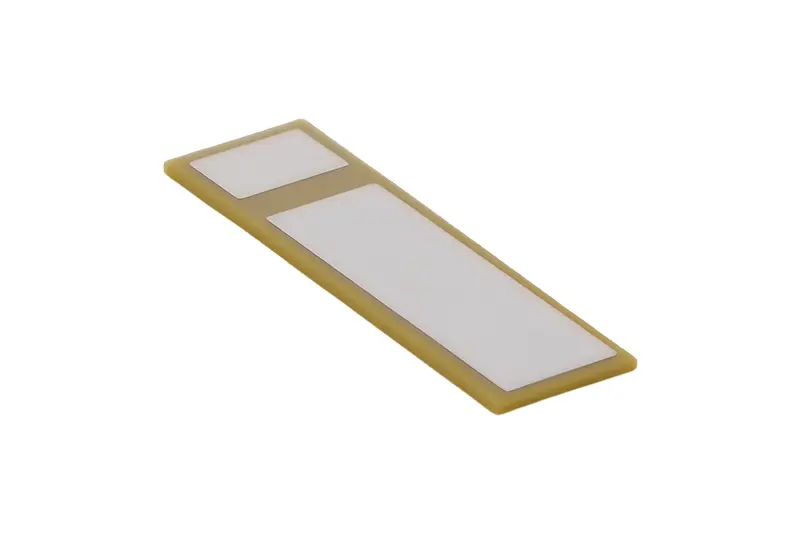

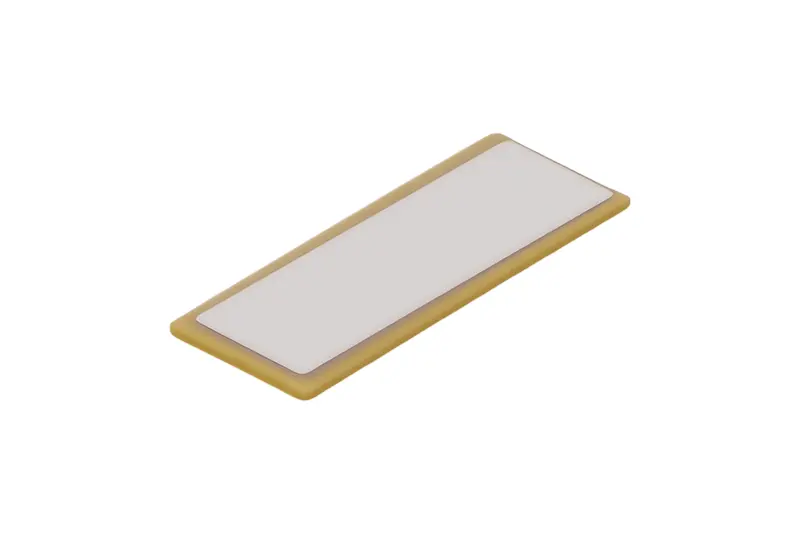

BESTARSENSOR Piezoelectric Ceramic Module BPM-F1304T0.3-L10-HU-O1
| Capacitor 120 Hz, 1V | 190±20% nF |
| Operating Voltage | 0~+60 V |
| Dielectric Loss | ≤0.05 |
| Resonant Frequency | 120±5K Hz |
| Resonant Impedance | ＜20 Ω |
| Insulation Resistance 25 VDC | ≥100 MΩ |
| Operating Temperature | -25...+65℃ |
| Storage Temperature | -40...+85℃ |
Features:
● Facilitates compact structural design
● Fast response time
● Large displacement/high acceleration
Description
The BPM-F1304T0.3-L10-HU-O1 is a buck-high or low-power piezoelectric ceramic module for designers to allow high-performance actuation in tight spaces. It combines a precisely machined ceramic element with great mechanical parts so that it can be installed directly in systems requiring reliable miniature motion.
Made from high efficiency piezo materials, the module's high response to electrical signals provides fast and large displacement and high acceleration. This makes it suitable for precise motion control, vibration tuning, tactile feedback and micro positioning task.
We guarantee stable electromechanical output in cycles in its internal design. It also works well in portable devices, miniaturized or embedded devices.
Typical applications are micro-Actuators, optical alignment systems, precision Sensors microfluidic, haptic feedback - analytical instrumentation, wearables, small automation applications.
As one of the best leading manufacturers of piezoelectrics we offer consistency in quality, support through applications and customization according to performance and structural requirements. The BPM-F1304T0.3-L10-HU-O1 is a responsive space-efficient solution for engineers who are developing next-generation precision systems.
